Heat Radiation Resistance Thermal Insulation FRC Fire Retardant Fabric With Aluminum Foil

Basic Information
Place of Origin: China
Brand Name: FRCTEX
Certification: NFPA2112, EN11612
Model Number: WSFC053
Minimum Order Quantity: 3000meters
Price: Negotiable
Packaging Details: inner plastic bag, outer woven bag
Delivery Time: 30-45days
Payment Terms: T/T, L/C
Supply Ability: 100000 meters per month
Detail Information
Material: 100% FR Cotton Fiber Add Foil Aluminum Usage Width: 57''/58''
Weight: 350gsm Color: One Side Is Silver, The Other Is White Or Navy Blue
Funtion: Flame Retardant, Radiation Heat Resistant, Oil Repellent Etc. MOQ: 3000meters
Standards: NFPA2112/EN11612
High Light:

Heat Radiation Fire Retardant Fabric


Aluminum Foil Fire Retardant Fabric


Thermal Insulation frc fabric

Product Description

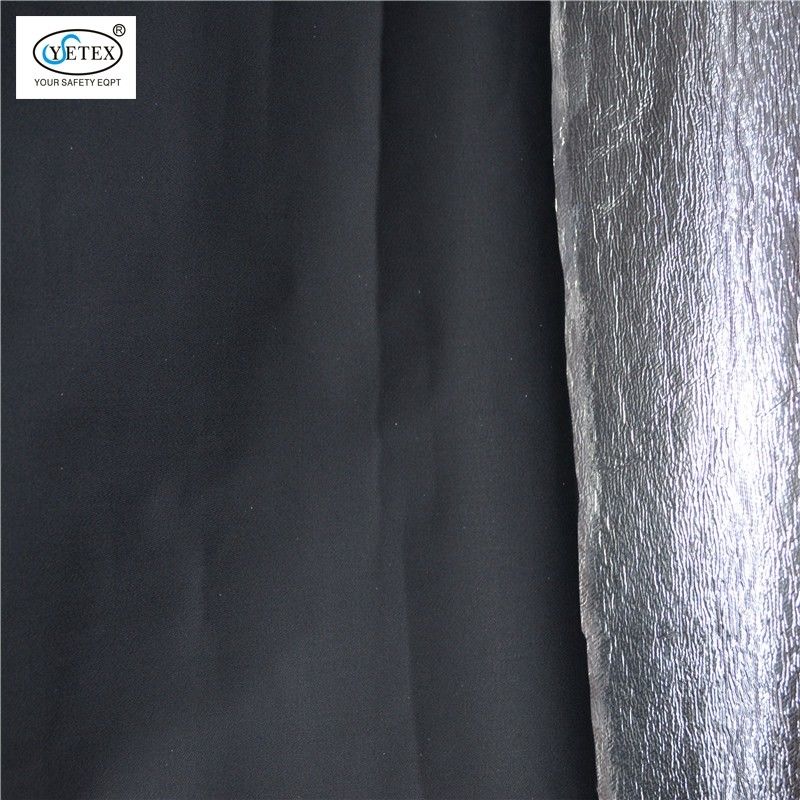

Heat Radiation Resistance FRC Fabric With Aluminum Foil

This FRC fabric with aluminum foil is mooth on the surface, apprearing silver luster, it has optional colors, one side can be navy blue or white, the other side is silver aluminum foil. Because of the aluminum foil composition, it has multiple functions, flame retardant, heat resistance, oil repellent, spark flash protection, which is a perfect thermal insulation FR materials.





Composition 100% cotton fiber with foil aluminum
Weight 350gsm±10gsm/710.3OZ
Usable Width 57"/58"
Color one side is silver, the other side is navy blue or white
Funtion flame retardant, anti static
MOQ 3000meters



Comply Standards


♦ EN ISO 11612

♦ NFPA2112



Technical Parameters

Flammability: no molten drops, after flame time ≦2s, after glow time≦2s

Char length: less than 100mm

Tearing Strength:≥25N in warp

Tensile Strength: ≥1000N in warp

Dimensional stability to washing: ±3%(after 5 times wash in 60℃)

Formaldehyde: less than 300ppm or 75 ppm

Color fastness to washing:4-5grade

Color fastness to perspiration:4-5grade

Color fastness to sunlight:4-5grade

Color fastness to dry-cleaning:4-5grade




1. 100% cotton fiber, surface is smooth with aluminum foil.

2. flame retardant and radiation heat resistance, thermal insulation, oil repellent.

3. provide spark protection.

4. Okeo Tex-100 certified and non-toxic to human body.




With 100% cotton fiber with aluminum foil , this Heat Radiation Resistance Thermal Insulation FRC Fabric With Aluminum Foil is applied in the industries of building, ships, automobile etc, for example, to be as thermal heat material in construction, fire retardant material on the grill, flame retardant workwear, fire curtains, fire blankets.


Our Products


We have different hundred of fabrics products, together with various fr workwear, the material and function can be customized, such as cotton fr fabric, CVC fr fabrics, knitted fr fabrics, cotton/nylon fr fabrics, aramid inherent fr fabrics, anti static fabrics, high vis fabrics, fr and anti static coveralls, water & oil repellent jackets, anti acid & alkali workwears etc.

Our products are 100% tested and can reach the standards of testing such as EN11612, NFPA2112, EN13034, GB8965.1-2009, BS5852, ASTM1959 etc.



Our Factory

We have ISO certified fr protective clothes factory covering the areas of more than 1000 square meters , together with cooperative fabric factory.

We have full department system, include R&D departments, qualified QC departments & perfect after sales departments, which enable us to offer one stop service to our customers.






Q: How about the product quality

A: We have a professional QC team to strictly inspect and control every section during production


Q: How about the shipping terms.

A: It could be shipped by FedEx,DHL,TNT,UPS, EMS etc for small quantity or samples.

For bulk shipping, it could be shipped by air or by sea.

The feature of shipping by air: fast but expensive

The advance of shipping by sea: economy but slower than by air.


Q: Do you have "Stocked fabric"?

A . Yes,we do. In order to shorten the delivery time, there's some greige fabric and also some FR fabrics with common colors in stock.
