240g Anti Arc Flash Twill Fire Retardant Fabric

Basic Information
Place of Origin: China
Brand Name: FRCTEX
Certification: OEKO-TEX Standard 100 Class 2, EN11612, NFPA 2112
Model Number: WSFC023
Minimum Order Quantity: 1000meters
Price: Negotiable
Packaging Details: inner plastic bag, outer woven bag
Delivery Time: 30-45days
Payment Terms: T/T, L/C
Supply Ability: 100000 meters per month
Detail Information
Material: 80% Cotton 20% Polyester Size: 20s*16s
Weight: 240gsm Color: Navy Blue
Style: Twill Funtion: Flame Retardant, Anti Arc
High Light:

240g Fire Retardant Fabric


Twill Fire Retardant Fabric


Anti Arc Fire Retardant Fabric

Product Description

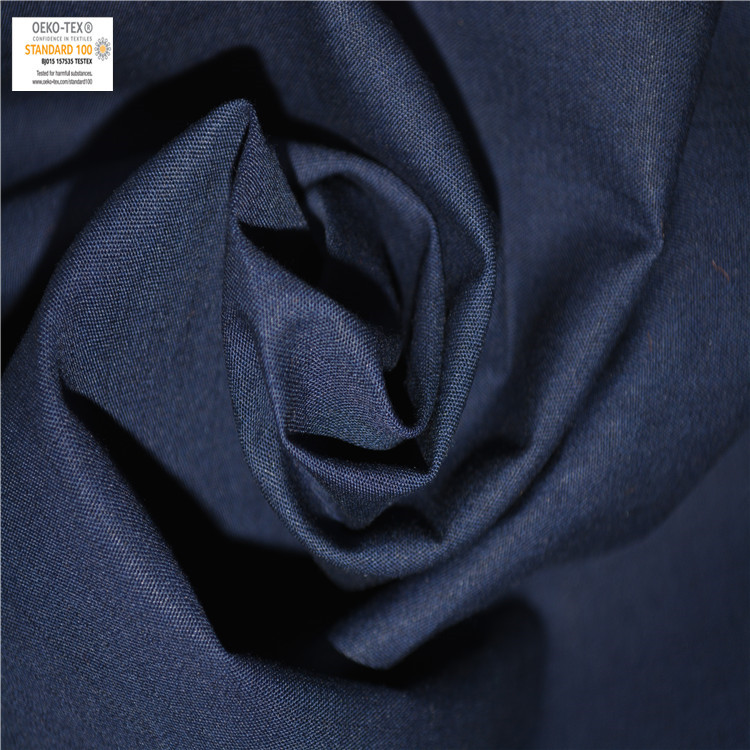

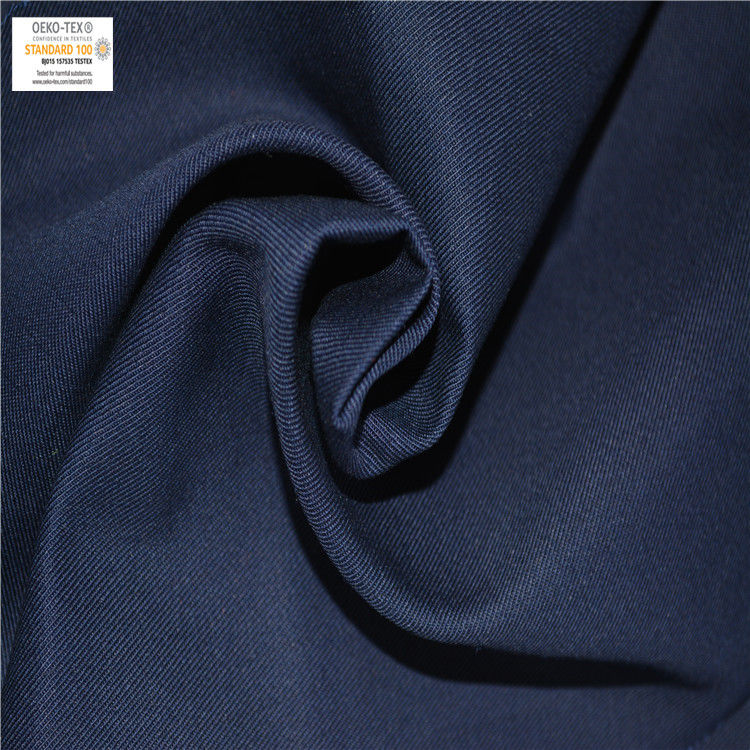

Navy Blue Cotton Polyester CVC 2016 240g Flame Retardant Fabric Twill

The navy blue CVC FR fabrics is a blend of 80% cotton fiber and 20% polyester fiber, so it has both the durability from polyester and comfort from cotton. With 240gsm fabrics by THPC fire retardant finished and arc flash treated, which meet NFPA70e/EN11612 standard, it can offer great protection against fire and electrical arc flash hazards.



Composition 80% cotton 20% polyester
Yarn Count 20s*16s
Weight 240gsm
Construction Twill
Usable Width 57"/58"
Color navy blue
Funtion flame retardant, anti arc flash
MOQ 1000meters


Comply Standards

♦ EN ISO 11612

♦ NFPA 2112

♦ NFPA 70E

♦ OEKO TEX Standard 100


Technical Parameters

Flammability: no molten drops, after flame time 2s, after glow time≦2s

Char lenght: less than 100mm

Formaldyhyde: less than 300ppm or 75 ppm

Dimensional stability to washing: ±3%(after 5 times wash in 60℃)

Color fastness to washing:4-5grade

Color fastness to perspiration:4-5grade

Color fastness to sunlight colorfastness:4-5grade

Color fastness to dry-cleaning:4-5grade




1. Good flame retardant property, can endure more than 50 times washing without decay

2. Blend of CVC fabric, Soft to skin, non toxic to human body and eco-friendly.

3. With high strength, no pilling, no shrinkage after industrial washing.

4. Good colorfastness to washing, sunshine.

5. Can offer double protection from fire and arc flash  hazards.





This Cvc Flame retardant antil Arc Flash Fabric is suitable for oil &gas industry,  construction industry, electrical industry and welding workers.



Our Product Line


our products include:


1) special fabrics

We offer cotton fabrics, cotton/nylon fabrics, cotton/polyester fabrics, modacry/cotton fabrics, CVC fabrics, knitted fabrics, camouflage fabrics, inherent aramid fr fabrics, rip stop fabrics, flame retardant fabris, anti static fabric, anti arc fabrics, water & oil repellent fabrics, anti acid & alkali fabrics.


2) protective clothing

We make protective clothing with multiple functions, such as flame retardant, anti static, anti arc, water & oil repellent, anti acid & alkali, anti musquito, anti ultraviolet etc.


3) fr accessories

we supply fr accessories, include fr metal zippers/plastic zippers, fr reflective tapes, fr velcros, fr stocking, fr welding hap, fr aramid/polyester sewing thread, fr buttons and so on



Our advantages


1. We have 15 years experience of fabrics and workwear production, 10 years export experiences.

    And all products can be customized to satisfy your requirment.

2. We supply competitive price, good quality and best service.

3. All the color,style,embroidery,fabrics can be adjusted as per your requirement.

4. All the fabrics we use is OEKO TEX certified, and accessories are all tested by third parties.




1. Q: How to ensure your product the delivery time?

A: -We have modern automated assembly line production equipment,Moreover,we have prepared finished fabrics which can be produced into clothes immediately to short,the delivery time to15-20 days; if you are Urgent for order ,we will be deal with it immediately.

2. Q:Can you produce small orders?

A: Yes,we do. If your Safety industrial protective clothing order is smaller than our MOQ, we can arrange special for you but the cost would be higher.

Q3: What are your normal payments terms?
A: Our normal payment terms now are 30% T/T deposit, balance before shipment.
